CareVac-NPB
Overview
CareVac-NPB has a high clarity, high temperature, and extra strength through the incorporation of nylon sets this film up as an excellent choice for heavy duty chamber vacuum applications.
This FDA approved film is intended primarily for demanding food applications that require wide temperature swings (freezer to boiling water) The retort tie layers exhibit high strength and low OTR. Hot fill soups, sauces, purees, and hot fill conditions for Condition b 21CFR 176.170:212F for 30 minutes for food groups II, III, IV-A, VII-B.
Note: The performance of any film will be influenced by a number of factors and testing must always be performed to ensure the film meets the use.
Relative Performance Indications
Oxygen Barrier
Moisture Barrier
Light Barrier
STrength
Heat Resistance
Freezer Storage
Material Data
Here are some of the common indicated properties for this film.
ITEM | VALUE / RESULT / INDICATION |
|---|---|

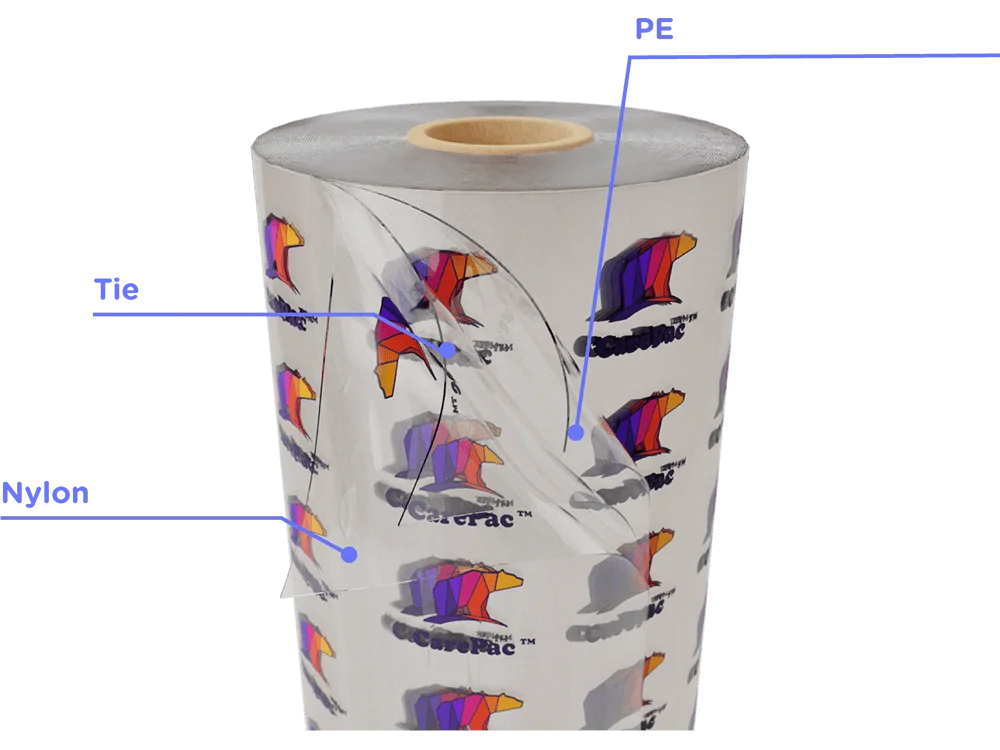

Material Composition | NYLON/T/Poly/T/PA/T/PE |
Available Thickness Range | 4 – 8 mil |
Tested Caliper Thickness | 5.0 |
Tested As | Film |
MVTR | .32 cc/100sq |
OTR | 3.22 gms/100sq |
Tensile MD/TD | 4350 / 4060 PSI |
Haze | 6 D-1003 |
Elongation | >400 D882 |
Tear CD | >450 D882 |
Seals | >30 N/15mm |
COF | Variable Kinetic -0.1-0.26 D1894 |
All values indicated regarding film properties or characteristics, were provided by our film supplier and are given as an indication and should be considered as average indicative values. This document is based on our film supplier statements and / or independent lab testing, data from multiple tests, or different film suppliers of the same film family may be combined in the above table. While unexpected, it is possible that the validity of the statements could change without notice.
Environmental Impact
This material is a multi-layer laminated plastic and will typically fall into the check-locally, or store drop off category.
Property | Sample Data |
|---|---|
Recyclable | Multi-Layer Check Locally |
PCR Option Available | No |
At Home Compostable | No |
Commercial / Industrial Compostable | No |
Recyclability and composability varies by jurisdiction. Composability claims are limited by law, and vary by jurisdiction, consult a qualified professional in your state.
Compliance
Compliance is important, and here are CarePac we can support your compliance needs with extensive film supplier and lab testing data.
BPA FREE
FDA Food Approved
PROP 65
Property | Sample Data |
|---|---|
CEPE/EuPIA | Manufactured in accordance with |
Cal. H&S (25214.16) | Compliant |
PFAS - perfluoroalkyl and polyfluoroalkyl § 37-0209, RCW 70A.222.070 | Does not knowingly add |
Prop 65 (OEHHA) | Does not contain listed substances |
SR 817.023.021 | Not in excess of overall or specific migration |
EU directive 10/2011/ED | Compliant |
EU directive 1935/2004 | Compliant |
FDA 21 CFR 73 | Compliant |
Cal. H&S (25214.16) | Compliant |
RoHS Directive 2011/65/EU | PASS |
Compliance information above is derived from lab testing, or film supplier statements. Independent verification is advised, and Lot specific testing available.
Related Materials
This film is a coextruded nylon/Poly vacuum film designed for standard food and industrial chamber vacuum applications. Best for conversion into 2-seal and 3-seal pouches.
CareClear-PNP
This material has a higher than average moisture and strength, with good oxygen and gas barrier. As this is a clear product it has limited light barrier potential but does have good heat resistance. Enhanced heat resistance could be obtained with CareClear-PNC is required by the use application.
